Design Concepts
The Hwy 22/Dodd Road Corridor Study area was divided into three segments for ease of reviewing concepts: West Segment, Middle Segment, East Segment. Below are design concepts developed for each segment, along with key features and benefits.
The public was encouraged to provide input by attending an open house (March 15, 2023) and completing an online survey (closed March 31, 2023). Public input was one of the considerations for project partners as they arrived at a final concept.
West Segment

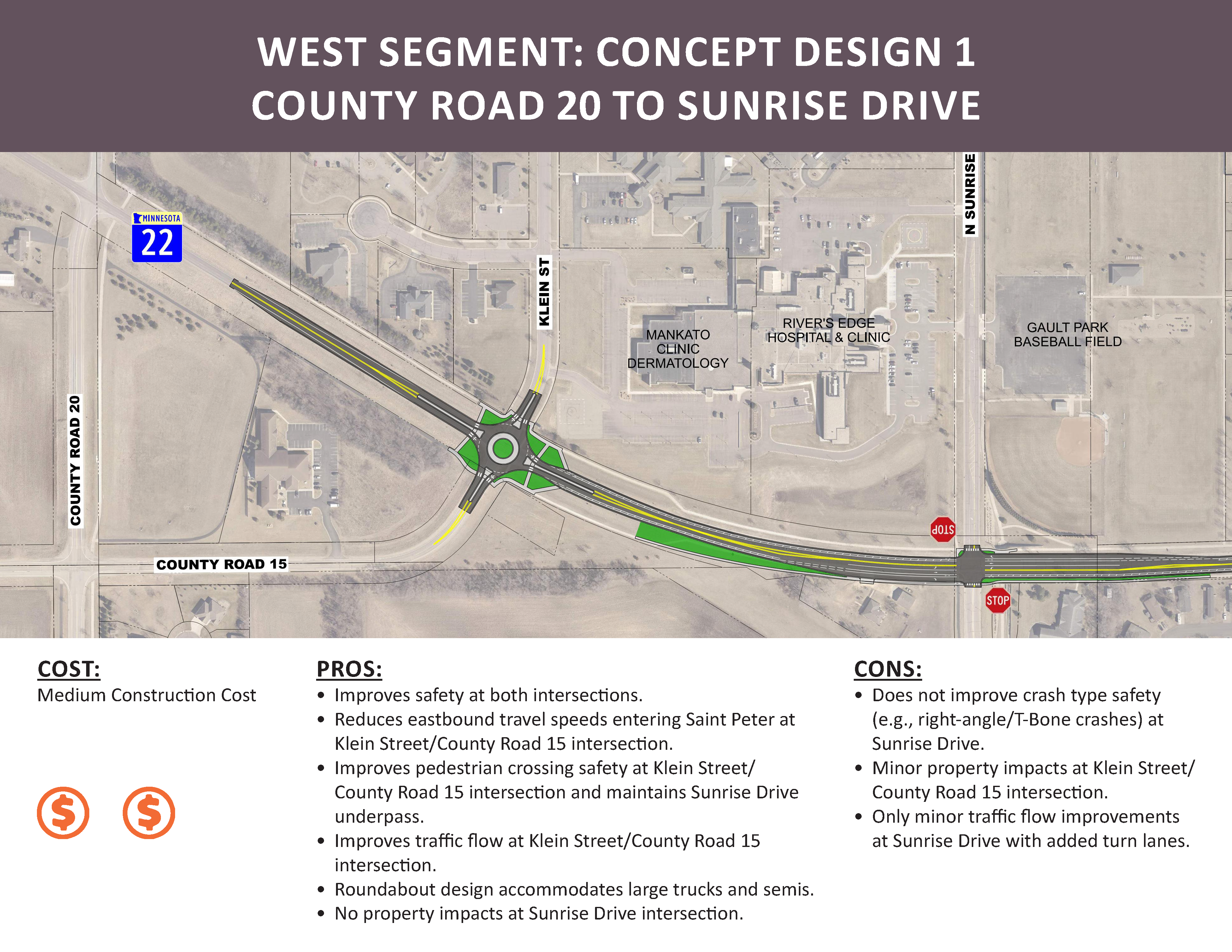

West Segment - Concept 1. Click for larger view.

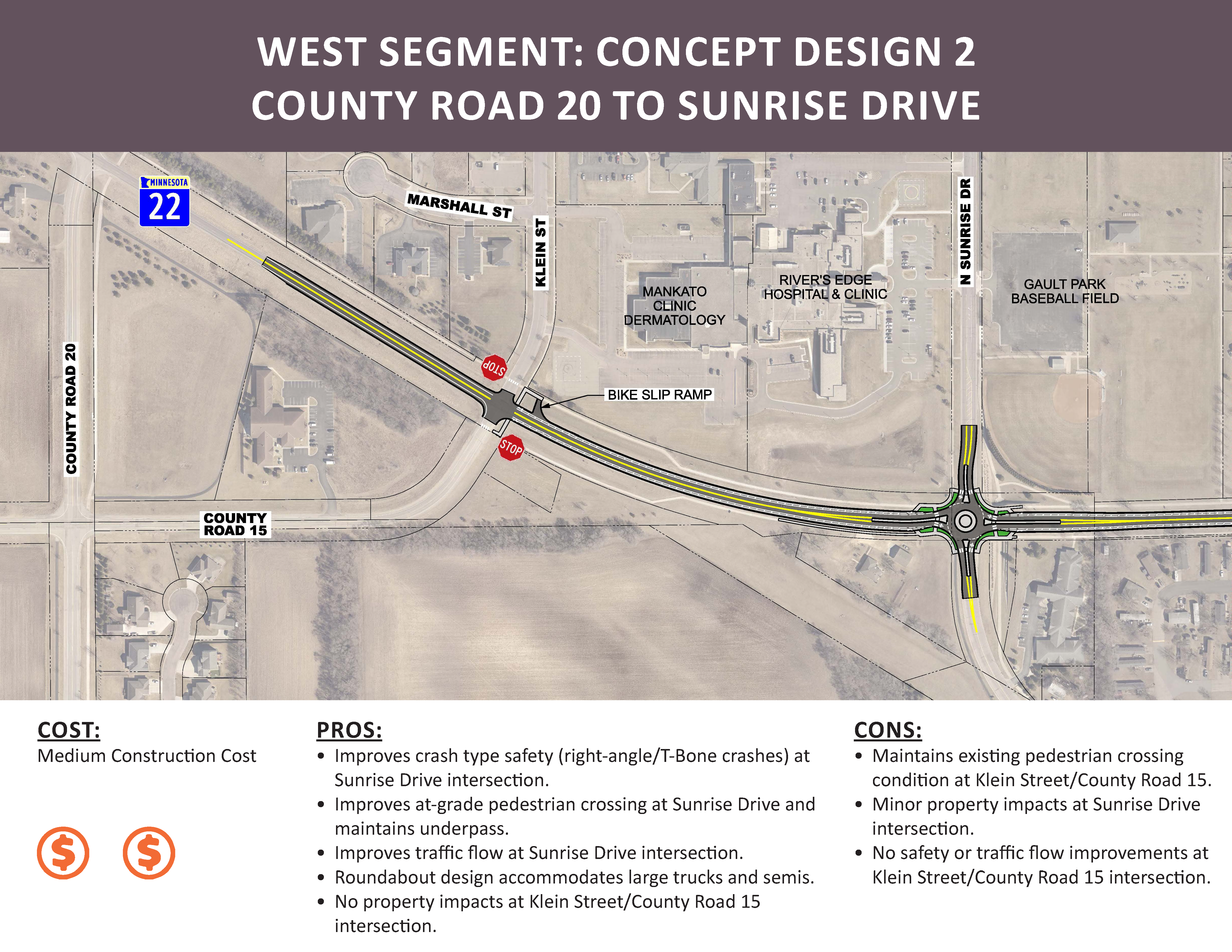

West Segment - Concept 2. Click for larger view.

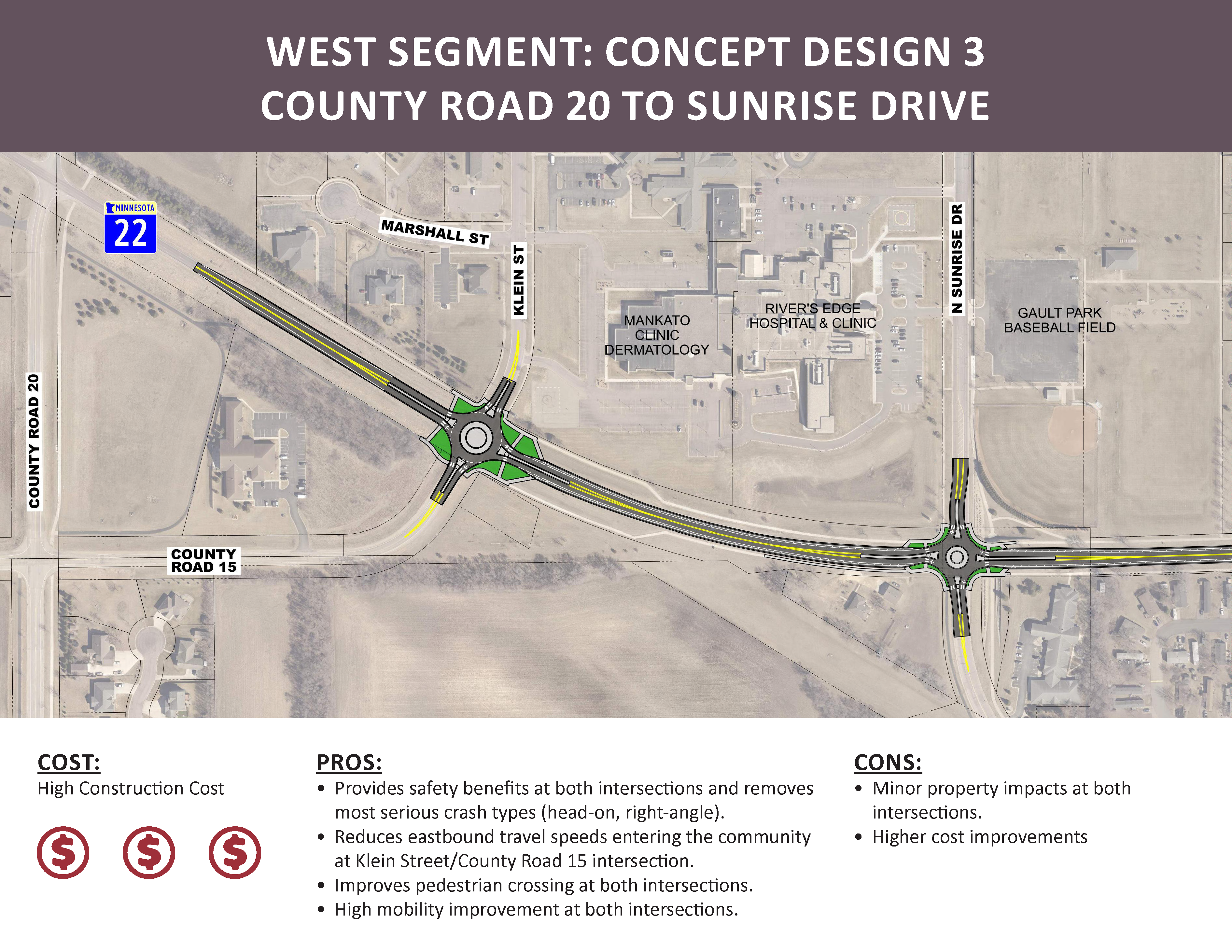

West Segment - Concept 3. Click for larger view.
Middle Segment

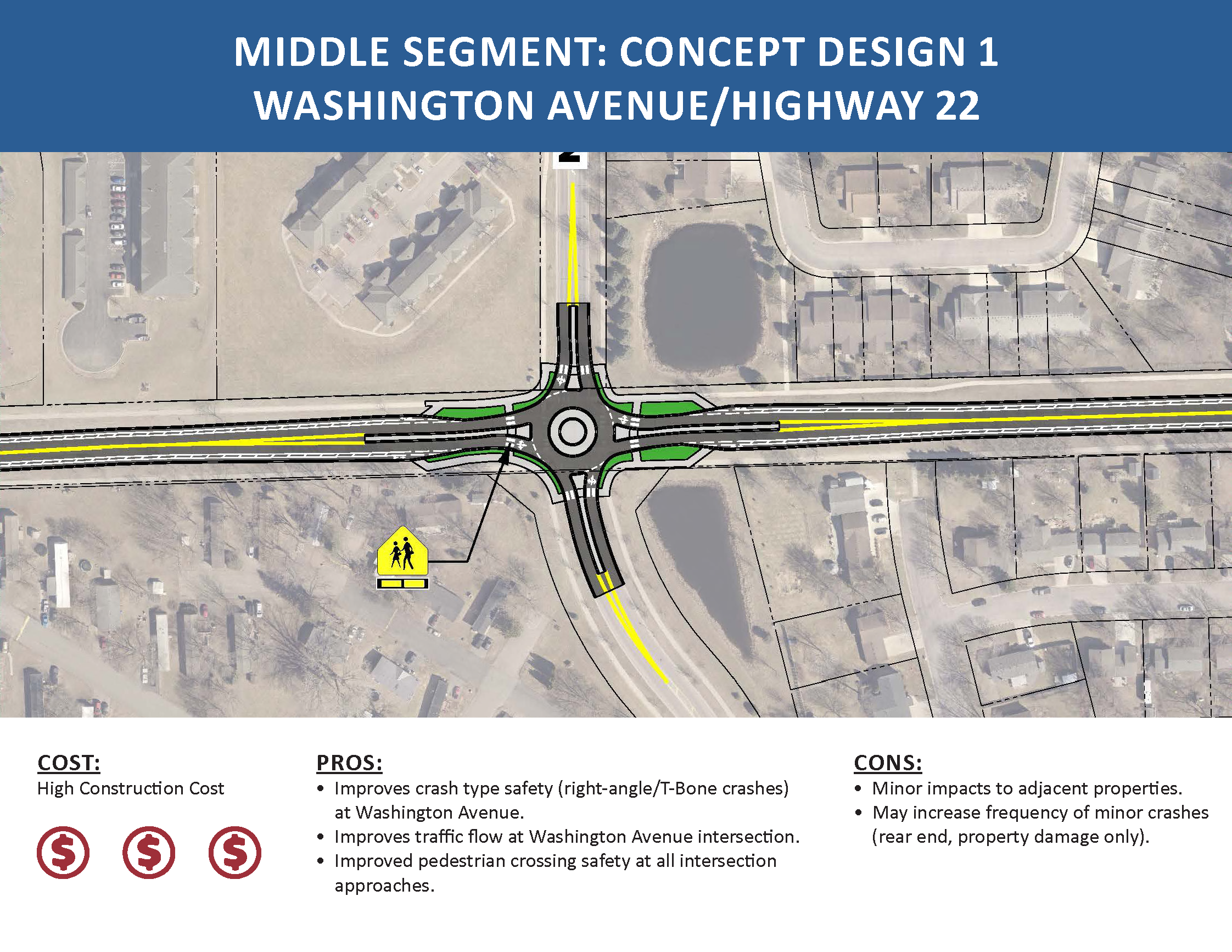

Middle Segment - Concept 1. Click for larger view.

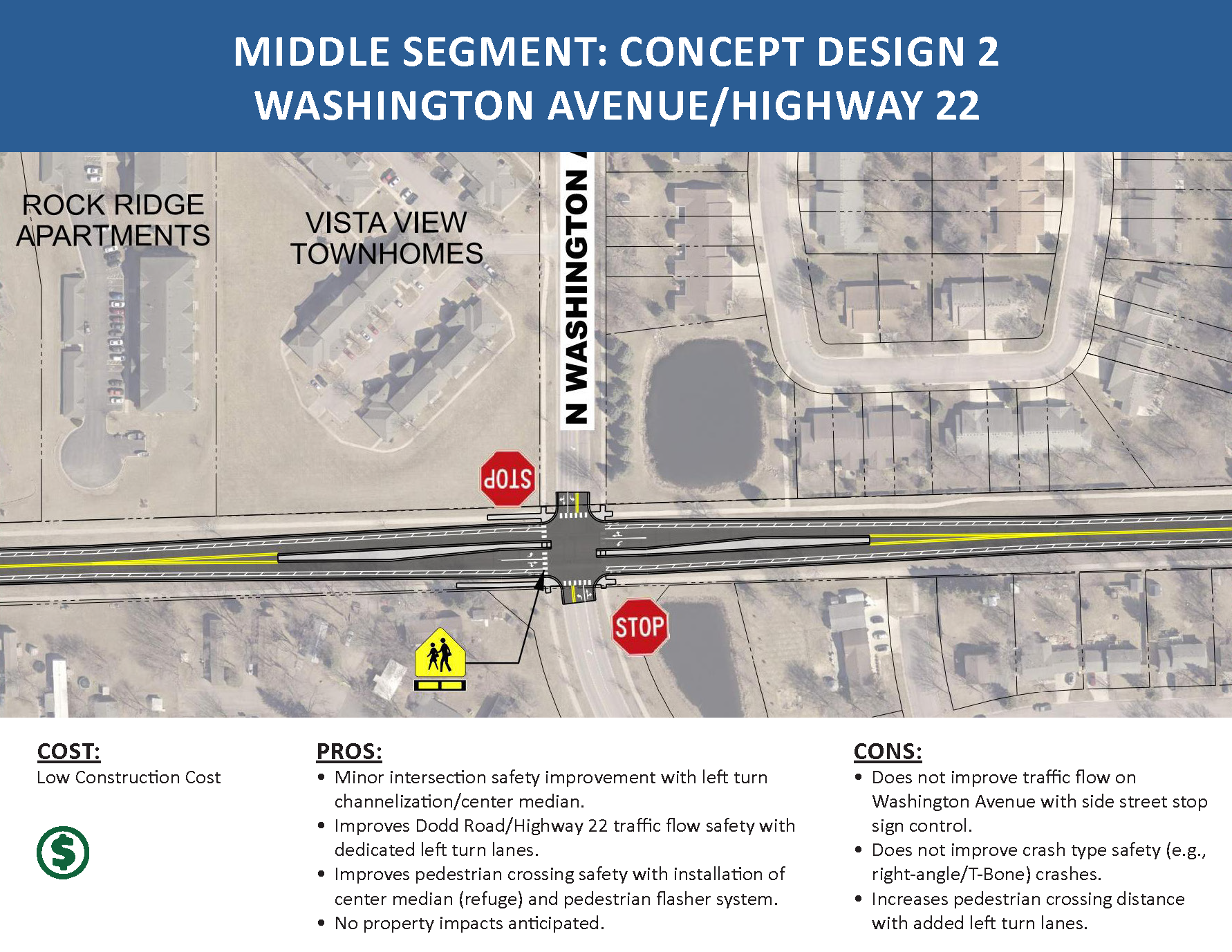

Middle Segment - Concept 2. Click for larger view.

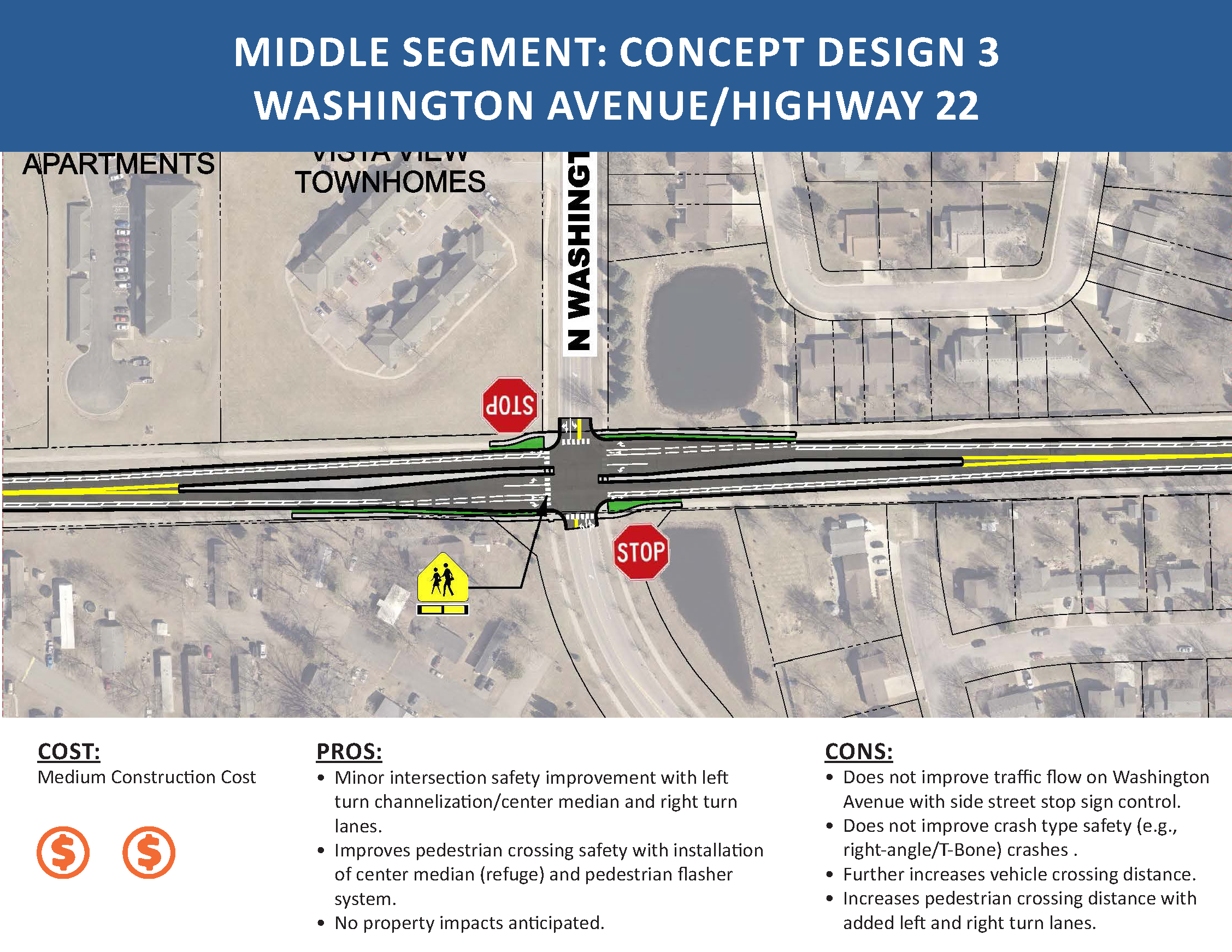

Middle Segment - Concept 3. Click for larger view.
East Segment

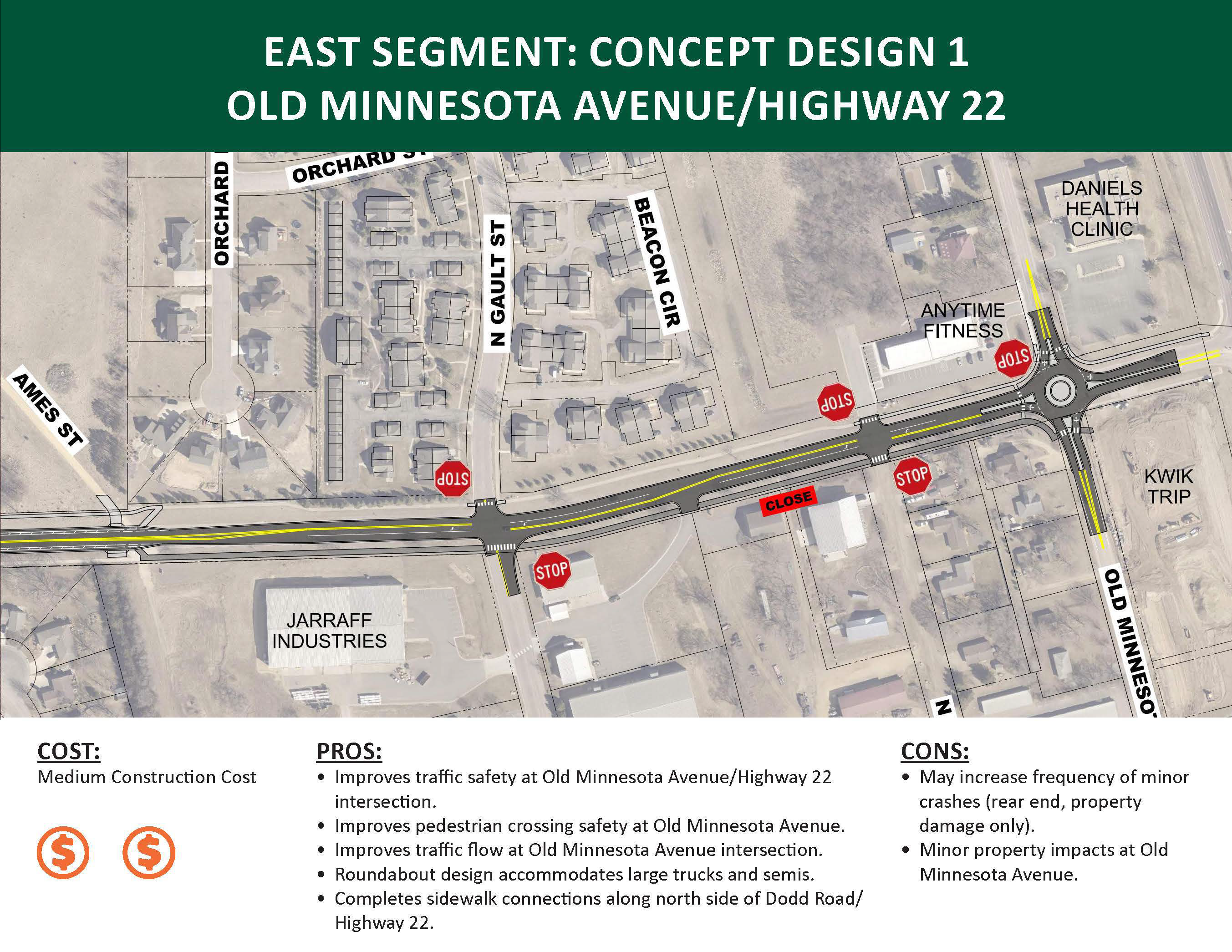

East Segment - Concept 1. Click for larger view.

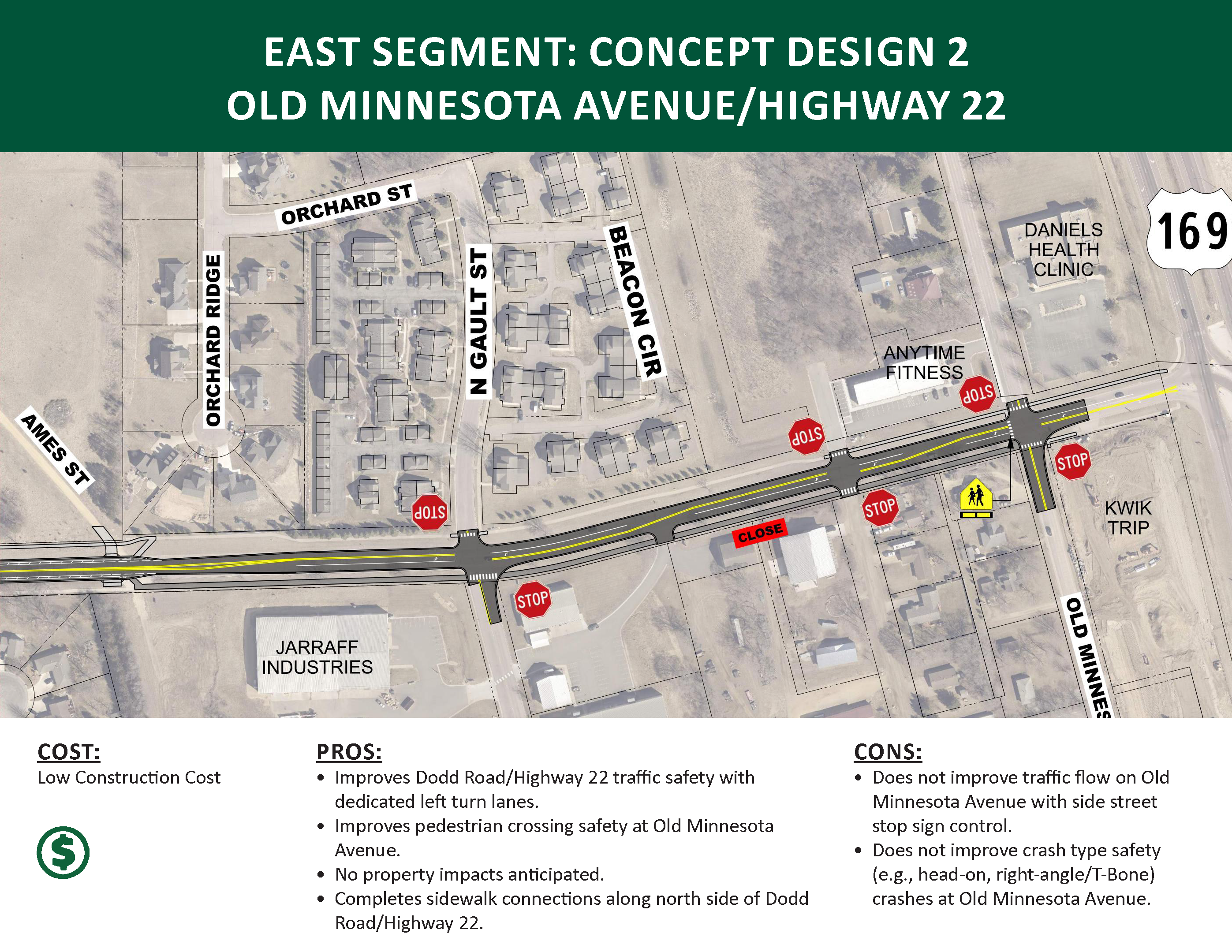

East Segment - Concept 2. Click for larger view.
